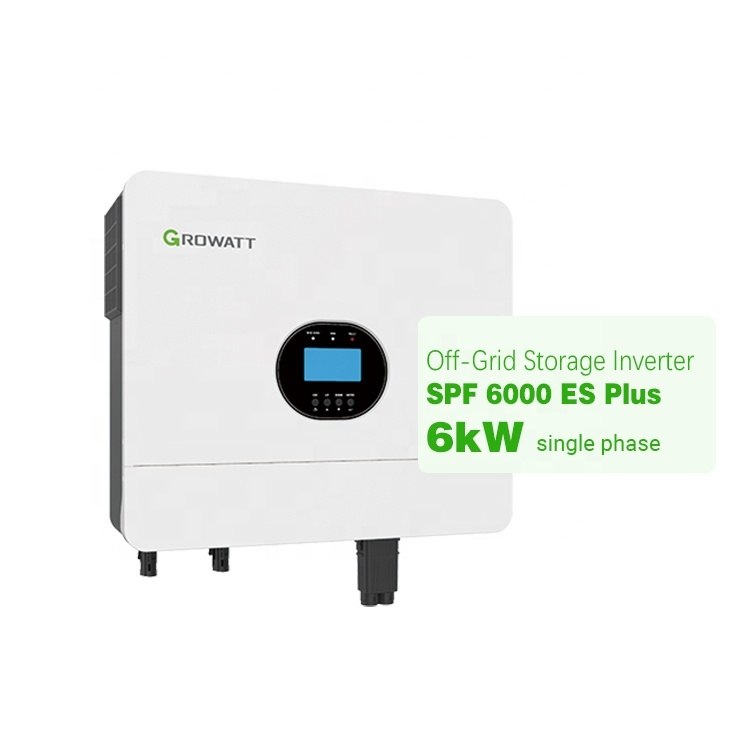

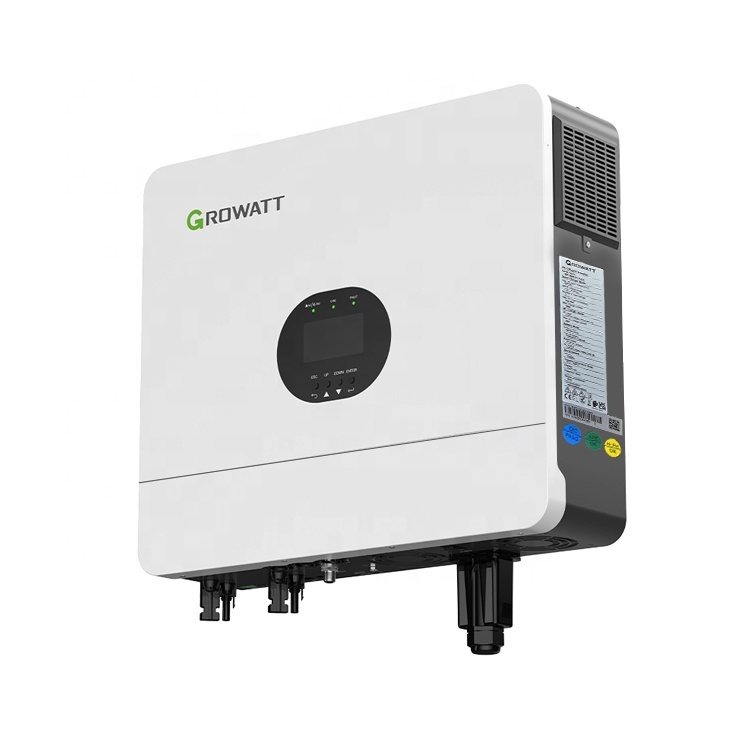

Growatt SPF 6000 ES Plus 6kW 48V Off-Grid Solar Inverter

Product Specifications

The Growatt SPF 6000 ES Plus 6kW Solar Inverter is a high-performance off-grid inverter designed for residential and commercial solar power systems. With a 6000W rated output, 48V battery system and pure sine wave output, it provides reliable power for a wide range of household and commercial electrical loads.

The inverter supports up to 8000W of solar PV input and features dual independent MPPT trackers, allowing efficient solar energy harvesting across different PV strings. It is compatible with both lithium and lead-acid batteries and supports grid and generator AC inputs for greater flexibility.

For larger installations, up to 6 units can be connected in parallel, making the system scalable as power requirements increase.

Key Features

• 6000W / 6000VA Rated Output: Suitable for substantial residential and commercial power requirements.
• 12000VA Surge Capacity: Handles short-duration startup loads from compatible appliances and equipment.
• Pure Sine Wave Output: Provides clean AC power suitable for sensitive electronics and appliances.
• 8000W Maximum PV Input: Supports a high-capacity solar array for improved solar energy production.
• Dual MPPT Technology: Two independent MPPT trackers provide greater flexibility when configuring solar arrays.
• 120–450VDC MPPT Range: Designed for high-voltage PV string configurations.
• 48V Battery System: Compatible with both lithium and lead-acid battery technologies.
• Parallel Capability: Supports up to 6 inverter units for system expansion.
• Grid & Generator Support: Dual AC input capability with integrated transfer functionality.
• Remote Monitoring Support: Supports Wi-Fi and GPRS monitoring with compatible accessories/configuration.
• Programmable Operation: Supports timed charging and output control.
• Integrated Dust-Proof Design: Designed to improve reliability in demanding operating environments.

Specifications

Applications

Suitable for homes, offices, shops, small businesses, farms and other off-grid or backup solar power installations. It can be integrated with solar panels, a compatible 48V battery bank, grid supply and/or generator depending on the system design.
