Growatt SPE 12000ES 12kW 48V Hybrid Solar Inverter – Dual MPPT

Product Specifications

The Growatt SPE 12000ES 12kW Hybrid Solar Inverter is a high-capacity single-phase inverter designed for residential, commercial and larger solar energy storage systems. Built around a 48V battery system, it supports lithium, lead-acid and gel batteries, providing flexible energy storage options for different solar installations.

Featuring dual MPPT solar trackers, a wide 60–480V MPPT operating range and a maximum PV input voltage of 550VDC, the SPE 12000ES is designed to efficiently manage high-capacity solar arrays while maximizing available solar energy.

The inverter supports on-grid and off-grid operation and offers parallel expansion for installations requiring substantially higher power capacity. Wi-Fi and RS485 communication provide convenient system monitoring and integration.

Key Features

• 12kW High-Power Capacity: Designed for larger residential and commercial solar power requirements.

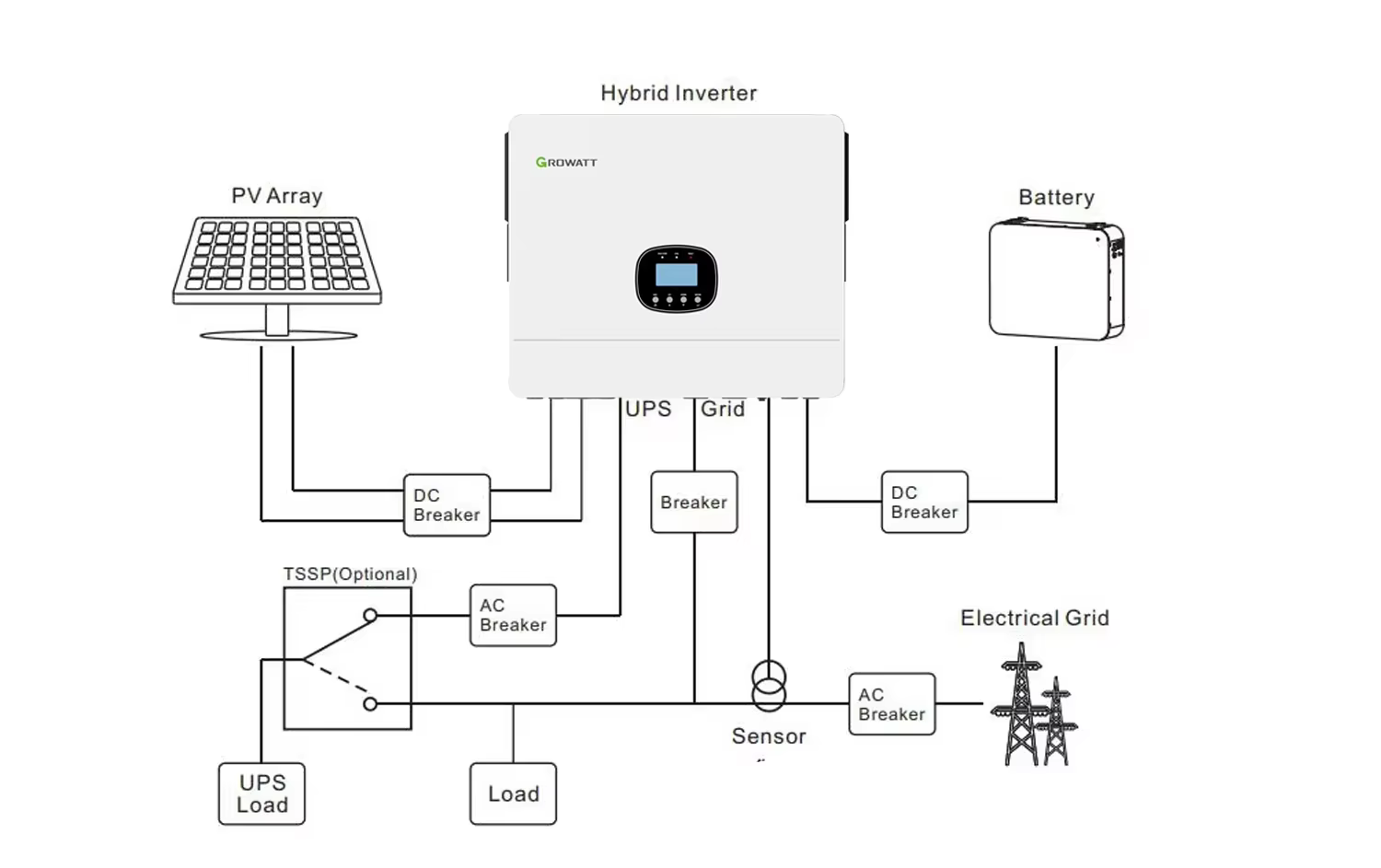

• Hybrid On/Off-Grid Operation: Provides flexible integration of solar, battery storage and utility power.
• 48V Battery System: Compatible with lithium, lead-acid and gel batteries.
• Dual MPPT Trackers: Independently optimizes solar PV inputs for improved energy harvesting.
• Wide MPPT Voltage Range: Operates across 60–480VDC for flexible PV array configuration.
• 550V Maximum PV Input Voltage: Supports high-voltage solar panel string configurations.
• 96.5% Inverter Efficiency: Designed for efficient DC-to-AC energy conversion.
• Single-Phase 230V Output: Suitable for compatible residential and commercial electrical systems.

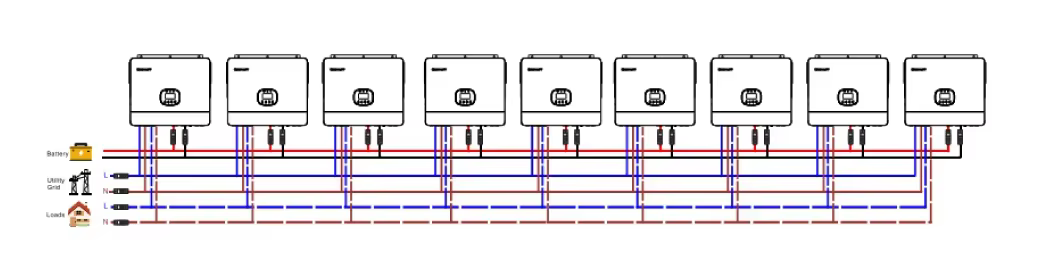

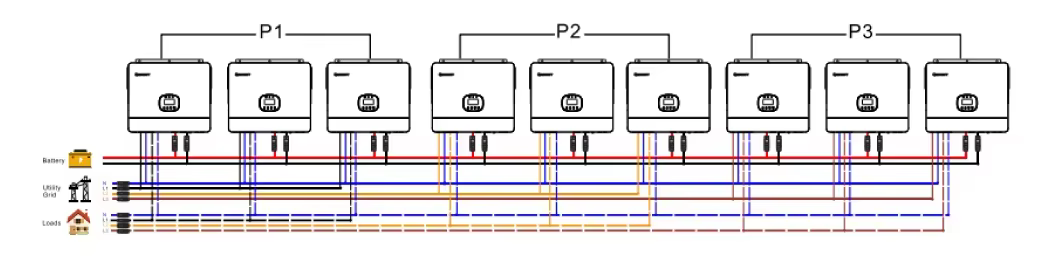

• Parallel Operation: Allows multiple units to be combined for larger-capacity solar installations.
• Wi-Fi / RS485 Communication: Supports system monitoring and communication with compatible equipment.
• 50/60Hz Operation: Suitable for different electrical system requirements.
• Durable High-Capacity Design: Engineered for demanding solar energy storage applications.

Specifications

Applications

Ideal for large homes, offices, shops, commercial premises, farms and other high-capacity solar energy systems requiring solar generation, battery storage and reliable AC power management.

Its scalable architecture also makes it suitable for installations where future capacity expansion may be required.
