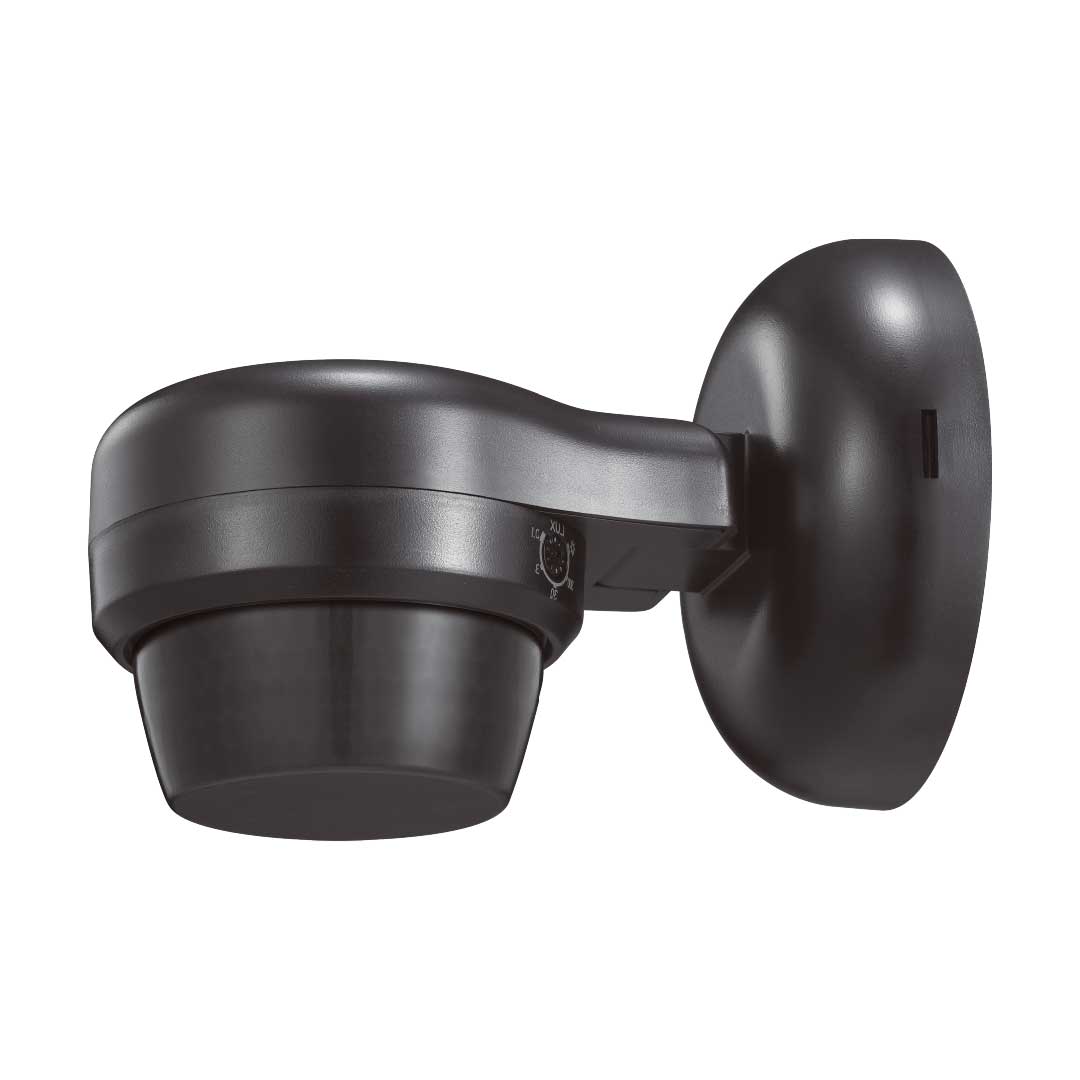

Infrared Motion Sensor – 360° Detection

Product Specifications

360° PIR motion sensor designed for full-area detection and automatic lighting control in both indoor and outdoor environments. With adjustable time delay and light sensitivity, it activates lighting only when needed, improving security while reducing energy consumption. Built with a durable IP65-rated housing, it performs reliably in all weather conditions.

• Detection Range: 360°
• Detection Distance: Up to 12 m (adjustable)
• Voltage: AC 220–240V, 50/60Hz
• Load Capacity: Up to 600W (LED)
• Time Delay: 10 seconds – 15 minutes (adjustable)
• Light Sensitivity: 3–2000 LUX (adjustable)
• Installation Height: 1.8 – 2.5 m
• Mounting Options: Wall (1.5–12 m) / Ceiling (1.5–3.5 m)
• Motion Speed Detection: 0.6 – 1.5 m/s
• IP Rating: IP65 (dust & water resistant)
• Operating Temperature: -20°C to +40°C
• Humidity: <93% RH
• Lifespan: >100,000 switching cycles
• Material: Durable black housing
• Dimensions: 88 × 88 × 130 mm

Applications

• Security Lighting: Motion-activated floodlights
• Outdoor Entrances: Doors, gates, compounds
• Garages & Driveways: Automatic light activation
• Walkways & Corridors: Energy-saving lighting control
• Retail Spaces: Trigger lighting when customers approach
